HDMI 2.0 Booster Box

HR-11

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 18 gbps (bandwidth)
  • HDMI 2.0
  • Stereo 192kbps
  • HDCP 2.2
  • HDCP 1.4
  • 20Meters
  • Shipping Now
Try me

OVERVIEW

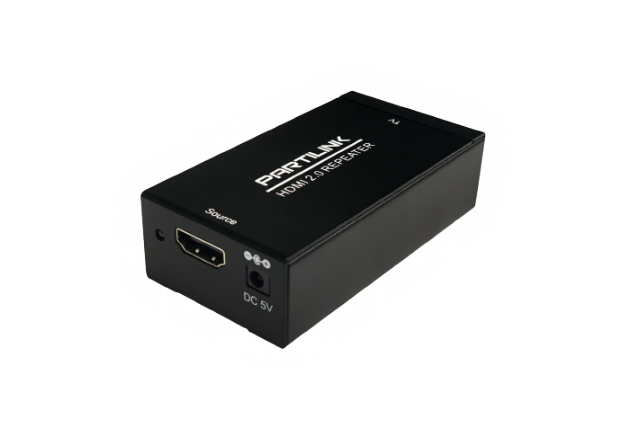

The Partilink HRD-11 repeater dongle is a booster to regenerate the HDMI 2.0 signal for extension distance up to 20M. Just connect the repeater between HDMI source and HDMI display such as monitor or projector. The maximum distance from the repeater to display can be up to 20M. It's also capable to cascade up to 10 units of the repeater.

FEATURES
-
Allows HDMI 2.0b signals to be sent over long distances using standard HDMI cables
-HDCP 1.4 and 2.2 compliant

-Serial data rate up to 6.0 Gbps, 18GHz bandwidth
-UHD (Ultra-High Definition) 4K / 2K at 60 Hz
-Retiming capability to transmit clean regenerated signals
-Adaptive and programmable input equalization supporting long and short lengths of cable
-Maintains full quality of the signal in a single HDMI link up to 4K 60Hz 4:4:4 color sampling
-Removes noise generating by long length HDMI cable for better audio visual quality
-CEC/ ARC pass through
-Extension length up to 20M
-Able to cascade up to 10 units

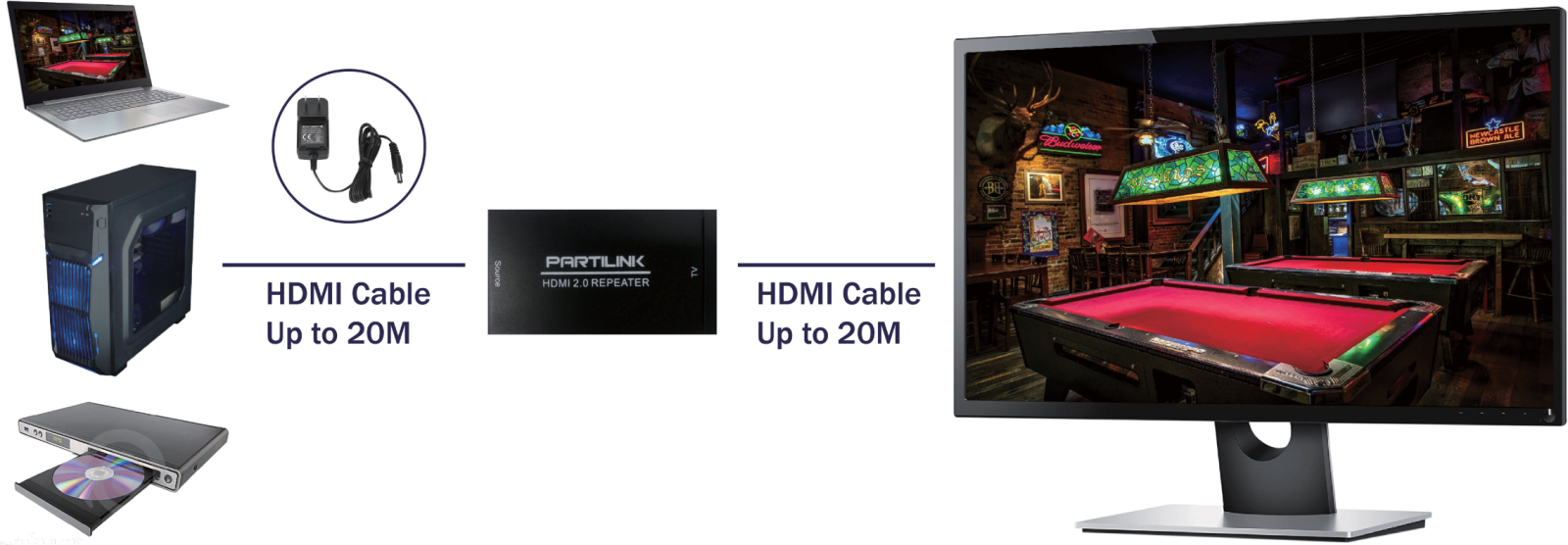

APPLICATION


MODEL NO.

HR-11

DESCRIPTION

HDMI 2.0 Repeater Box

MAX INPUT RESOLUTION

HDMI x 1 type A female

Resolutio n 3840 x 2160/ 4096 x 2160 @60Hz 4:4:4

MAX OUTPUT RESOLUTION

HDMI x 1 type A female

Resolution 3840 x 2160/ 4096 x 2160 @60Hz 4:4:4

VIDEO BANDWIDTH

18 Gbps

HDCP VERSION

1.4 and 2.2 compliant

LED INDICATOR

LED x 1, green, red and orange for status indication

AUDIO

Digital audio output over HDMI

POWER

Power supply DC5V

Power consumption 1W (max.)

Power jack Φ1.3mm

Including Power Adapter EU 5V + Cable USB A to DC 3.5 mm/1.35 mm 5 Volt

ENVIRONMENT

Operating temperature 0~45°C Operating humidity 20~90% Storage temperature 20~60°C

DIMENSION

154 x 69.2 x 23 mm ( L x W x H )

CASE MATERIAL

Robust metal case

FILE NAME FILE FORMAT SIZE DATE
DATASHEET_HR-11_HDMI 2.0 REPEATER BOX PARTILINK 4June2019 pdf 322 KB 2019-06-04 Download
