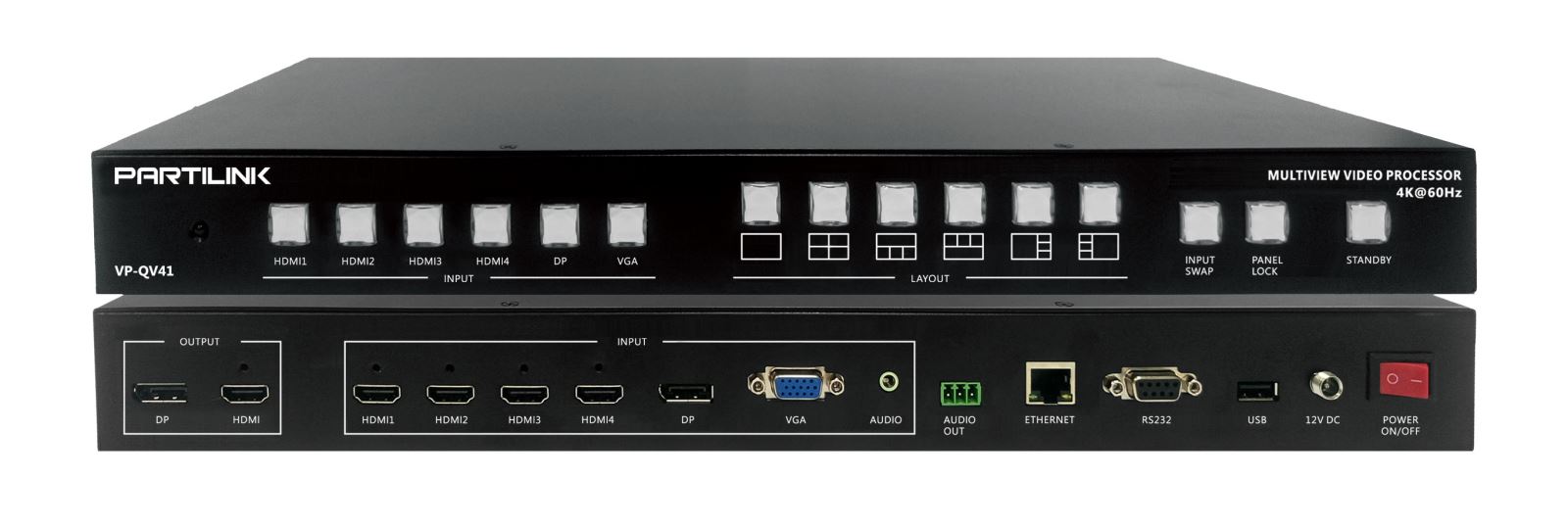

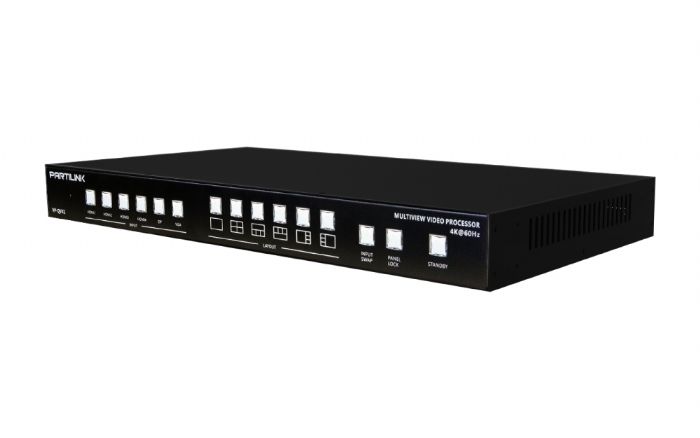

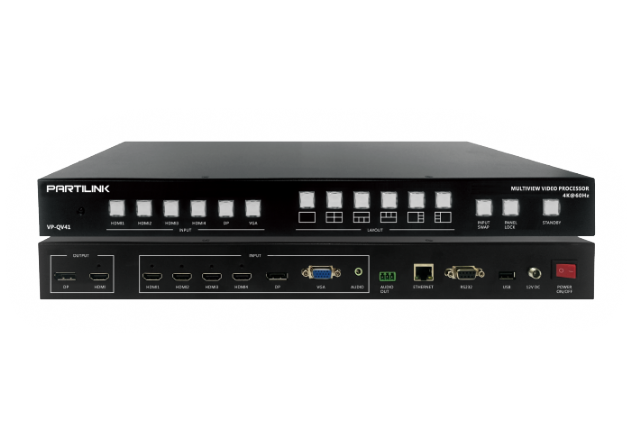

HDMI 2.0 / DP / VGA MULTIVIEWER

QV41
Ref: VP-KM41
For simultaneous display of three HDMI 2.0/1.4 + one DisplayPort or one VGA sources on one screen with output resolutions up to 4K UHD @60Hz 3840 × 2160 4:4:4

Technologies

  • 4k60 UHD
  • YUV 4.4.4
  • Real picture
  • 3d ready
  • 18 gbps (bandwidth)
  • VGA
  • HDMI 2.0
  • DP1.2a
  • Stereo 192kbps
  • Front panel buttons
  • HDCP 2.2
  • User Friendly
  • No Virus Risk
  • TelNet Control
  • 24-7 nonstop working
  • Customized layout
  • Multiview
  • picture on picture
  • RemoteControl
  • Cascade 5 Pcs
  • Shipping Now
Try me

OVERVIEW

The Partilink VP-QV41 Multiview Video Processor is a user-friendly HDMI, VGA and DisplayPort video scaler and multiviewer designed to display up to four video sources on one 4K@60Hz 4:4:4 screen simultaneously. It handles any input resolution up to 4K@60Hz to output maximum 4K@60Hz or downscale the resolution.

FEATURES

-Fast switching between input channels and combined multiple images on single monitor
-Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2 also handle VGA, and DisplayPort sources
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-
Output resolution up to 4K@60Hz, 4:4:4 color samplingScaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well
-PiP, PoP and multi-view layout configurations
-
14 different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts

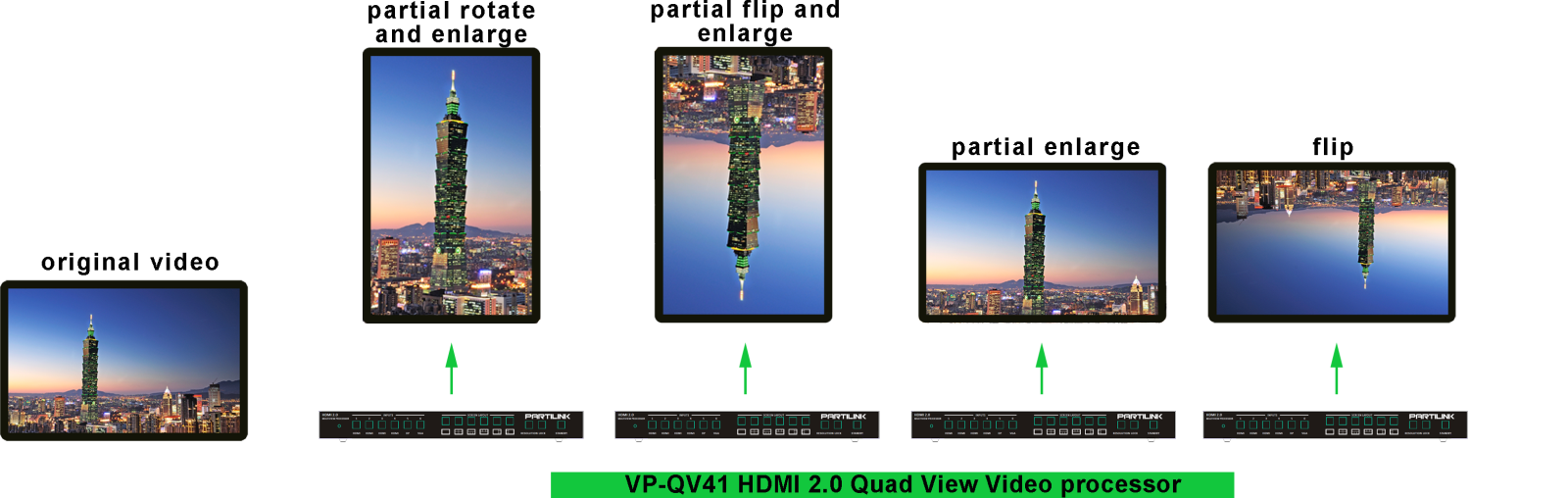

-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen mode
-Stereo audio output and input
-
Control by front panel button, IR remote control, RS232/Telnet and Web UI
-
Firmware upgrade via USB port
-DP loop through output

APPLICATION
-Hospitality in lobby, hospital, clinic
-Conference room presentation
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema
-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market

MODEL NO.

VP-QV41

HARDWARE

System Structure

pure hardware

Operating System

no CPU and operating system

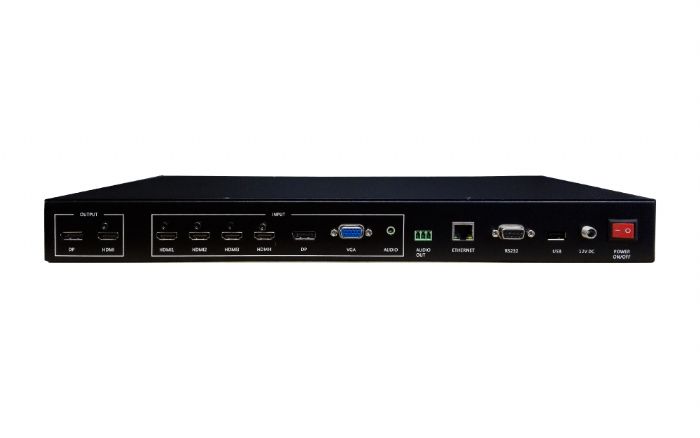

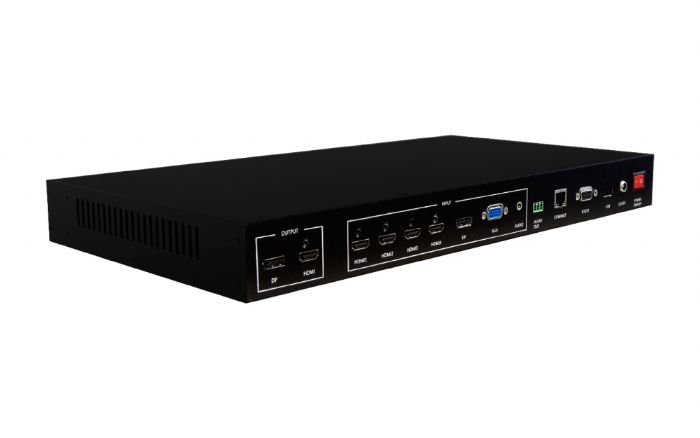

INPUT/ OUTPUT

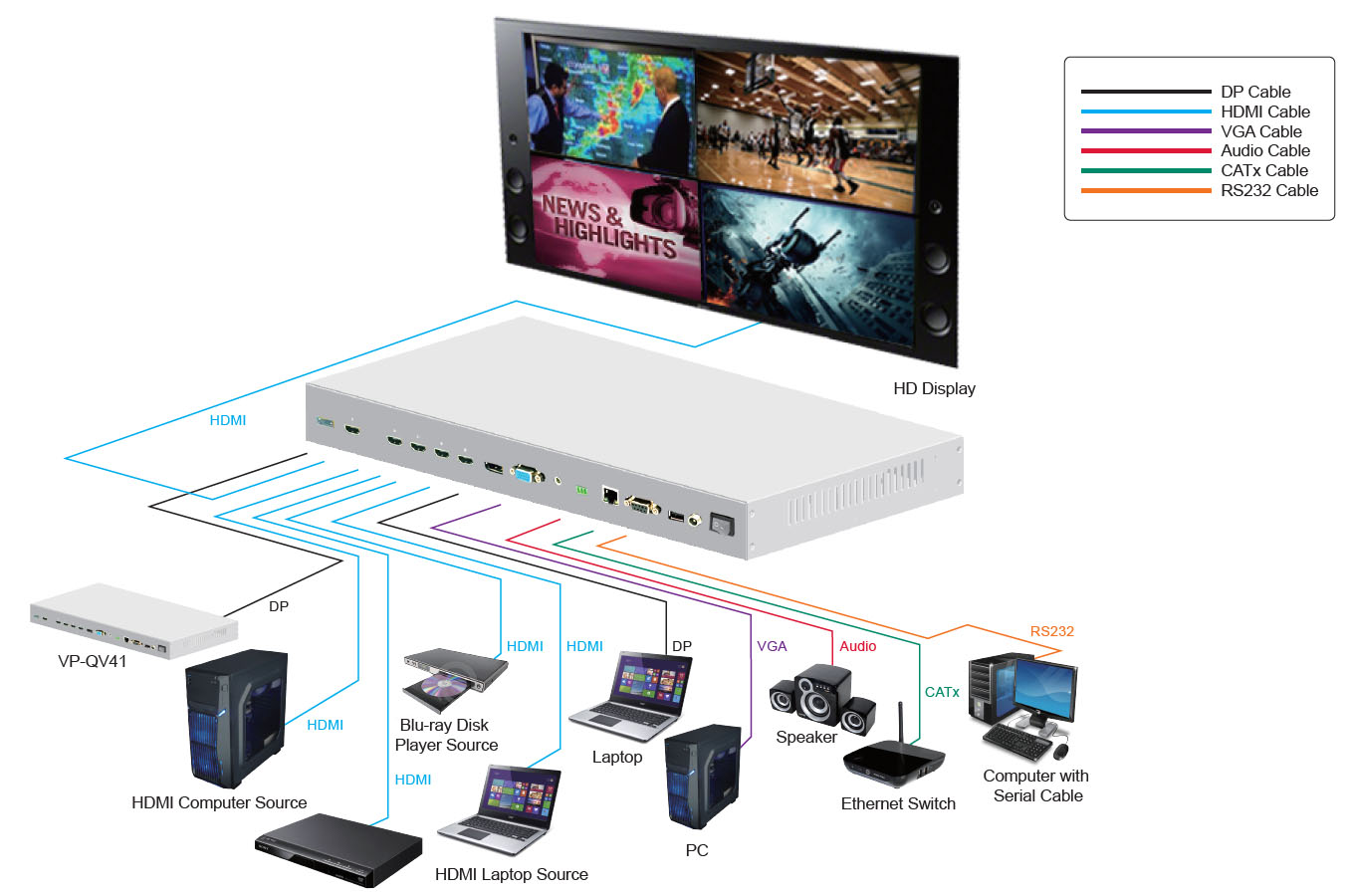

Inputs

4 x HDMI 2.0 with locking, 1 x DisplayPort 1.2, 1 x VGA + 1 x 3.5mm Audio jack

Output

1 x HDMI 2.0 with locking, 1 x DisplayPort 1.2

Audio Output

Terminal Block 3 Pole, Stereo

IMAGE PROCESSING

Display Mode

full screen, Quad view, PiP, PoP

Input Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Max Output Resolution

up to 3840 x 2160@60Hz, 4:4:4 color sampling

Output Resolutions

3840x2160 - 60Hz, 50Hz, 30Hz              1920x1080 - 60Hz

1280x720 - 60Hz                                  720x480 - 60Hz

Output Color Depth

8 bpc (24 bit/px)

Scaler

scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well

Video Bandwidth

up to 18 Gbps

HDMI Compliance

HDMI 1.4 and HDMI 2.0

HDCP Compliance

HDCP 1.4 and 2.2

CONTROL METHODS

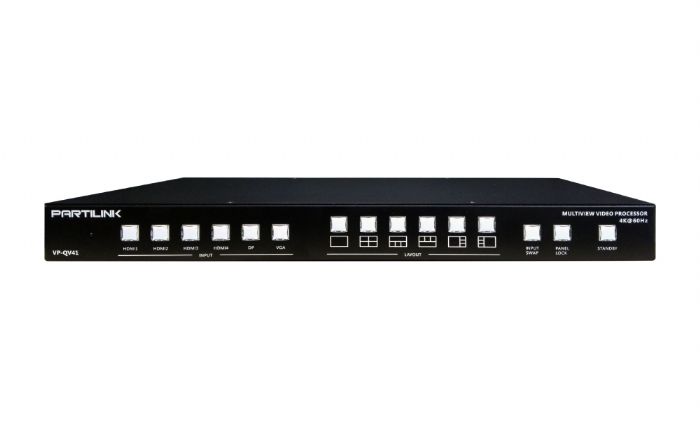

Front Panel Buttons

4 x select HDMI 1,2,3,4 input and/or audio, 1x DisplayPort, 1 x VGA, 6 x display layout, 1 x Input Swap, 1 x Panel lock, 1x Standby

IR

1 x IR remote control

RS232/ Telnet

1 x D9 Female Connector / Compatible with third party control system

Ethernet Port

1 x RJ45

Web UI

browser / touch screen

STABILITY

Safety

hardware structure, no risk of virus interference

Running Time

no auto-reboot during 365 days/year, 7days/7, 24h/24

FIRMWARE

Possible Upgrade

1 x USB 2.0

LED INDICATOR

Input

blue backlight

Output

blue backlight

Panel Lock

blue backlight

Standby On

red backlight

Standby Off

green backlight

POWER

Internal Power Supply

DC 12V/2A, locking barrel connector

Power Consumption

15W

Power Adaptor

universal power adapter

ENVIRONMENT

Operating Temperature

0 °C~45°C

Operating Humidity

20~90% RH

Storage Temperature

-20 °C~60 °C

PHYSICAL

Dimensions

440.4 x 230 x 45 mm (L x W x H, standard 1U)

Fixing Components

rear bracket, footpad and screws

Weight

2.72 KG
