FHD HDMI grabber

FHD HDMI Grabber

Capture 1080p video/audio signal from HDMI source

Technologies

Try me

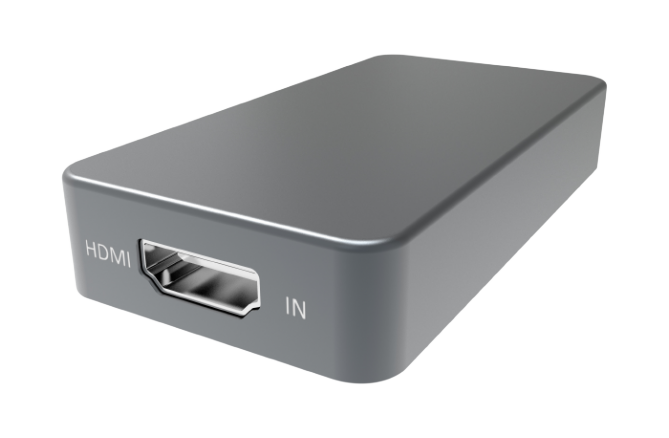

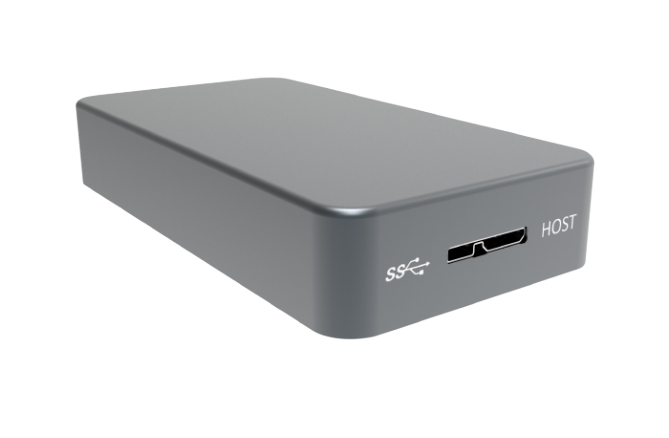

Partilink FHD HDMI grabber (external USB capture) designed to capture 1080p video/audio signal from HDMI source, and transfer video/audio between grabber and PC/NB through USB cable. Minimal design to reduce space on your table but at the same time, capture resolutions up to 1080p at 60 frames per second

Features

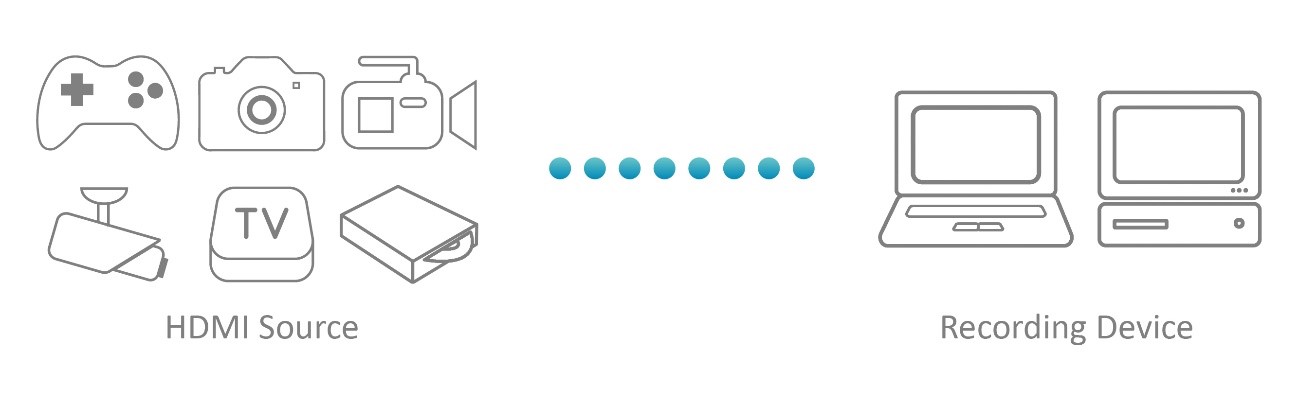

Capture video and audio from HDMI sources such as video display or camera sources
Supports true 24-bit color and provides consistent frame rate performance regardless of video content
Support USB 3.0 or USB 2.0 data uplink. Sources power from the USB port, no external power supply required
Captures Resolutions up to 1080p at 60fps
Compatible with many multiple 3rd party applications interfaces such as; DirectShow on Windows, Video4Linux on Linux, QuickTime on Mac OSX
Minimal to zero lag video capture for a live streamer
Sources power from the USB port, no external power supply required

MODEL NAME	FHD HDMI grabber
DESCRIPTION	FHD HDMI grabber
DIMENSION	78 x 41 x 15 mm (W x L x H)
WEIGHT	56 G
INPUT INTERFACE	HDMI Type A: HDMI 1.4b standard up to 1080p at 60fps
OUTPUT INTERFACE	Micro USB Type B
VIDEO SAMPLING	4:4:4 format
RESOLUTION	480p, 720p, 1080p
OUTPUT COLOR SPACE	YUV2, RGA
HDMI AUDIO	16-bit PCM encoded audio at 32KHz, 44.1KHz and 48KHz sampling rates
Color	Titanium Gray

FILE NAME	FILE FORMAT	SIZE	DATE
Datasheet_Partilink_2k Video capture Box (HDMI to Micro-USB-B ) V0.1	pdf	215 KB	2019-10-07	Download
