1080p HDMI to USB-C Grabber

1080p HDMI to USB-C Grabber

capture 1080p video allowing the user to plug-in various HDMI output devices(such as PS4, XBOX, Switch, camera, etc.)

Technologies

  • 1080P FHD
  • Shipping Now
Try me

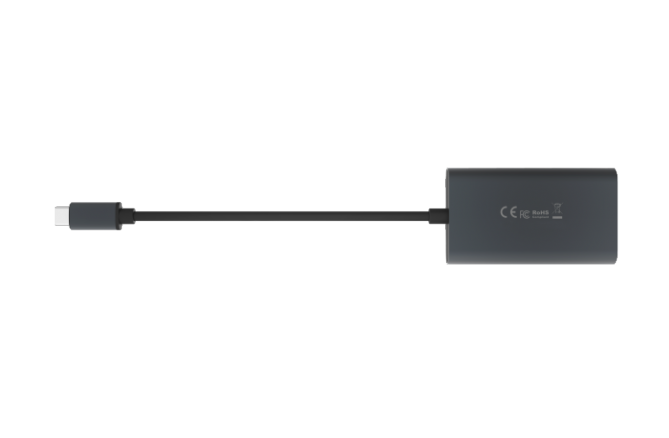

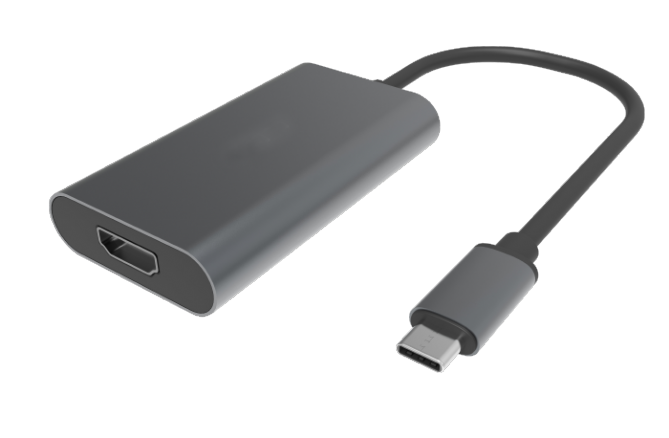

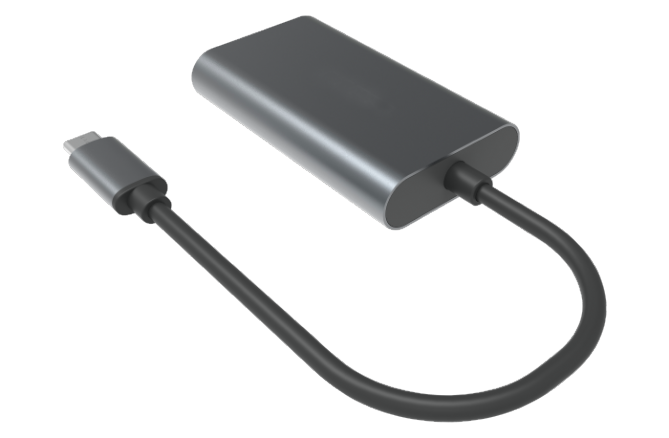

Partilink 1080p HDMI to USB-C Grabber is designed to capture 1080p video allowing the user to plug-in various HDMI output devices(such as PS4, XBOX, Switch, camera, etc.)data uplink to 1920 x 1080p at 60Hz to the computer through the USB terminal.  Streaming media made easy, capture every sound and movement.  It will not affect your computer’s performance, while maintaining a resolution up to 1080p at 60 frames per second.
  • Features
  • Supports HDMI 1.4b Standard up to 1080p @ 60fps
  • Supports video capture at 1080p @ 60fps
  • Supports 24 bit color
  • Supports USB 3.0 and USB 2.0 data uplink
  • Supports UVC 1.0
  • Supports USB – C connector
  • Supports USB port power supply, no need for an external power supply
  • Compatible with third-party applications, such as PotPlayer, QuickTime, OBS, Xsplit, vMix, etc.

MODEL NAME

1080p HDMI to USB-C Grabber

DESCRIPTION

1080p HDMI to USB-C Grabber

INPUT INTERFACE

1 x HDMI Type A

1 x HDMI 1.4b standard up to 1080p at 60fps

OUTPUT INTERFACE

1 x USB type-C ( USB 3.0 )

UVC video and audio

RESOLUTION

640x480p, 1280x720p, 1920x1080p

VIDEO SAMPLING

4:4:4 format

OUTPUT COLOR SPACE

YUY2, RGB

HDMI AUDIO

16-bit PCM encoded audio at 48kHz sampling rates

SYSTEM REQUIREMENTS

CPU: i5 Dual Core 2.8GHz or higher

RAM: 4GB or higher

OS: Windows (8 and above), Mac OSX (10.13 and above)

ENVIRONMENT

Operating Temperature 0~45                                                                                                                                                                                                                               Operating Humidity 20~90%

DIMENSION

42 x 240 x 14 mm ( W x L x H including cable length)

WEIGHT

40 G

COLOR

Titanium Gray

ACCESSORIES

USB-C to USB-A 3.0 Adapter

*DO NOT SUPPORT HDCP

FILE NAME FILE FORMAT SIZE DATE
Datasheet_Partilink_1080p HDMI to USB-C Grabber SPEC sheet_EN V0.1 pdf 212 KB 2019-10-07 Download
