OVERVIEW

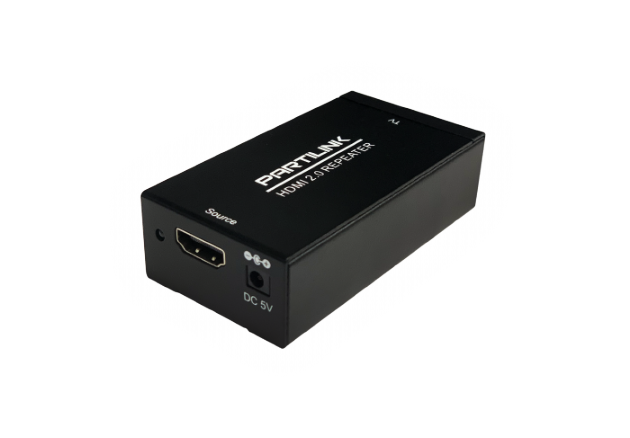

The Partilink HRD-11 repeater dongle is a booster to regenerate the HDMI 2.0 signal for extension distance up to 20M. Just connect the repeater between HDMI source and HDMI display such as monitor or projector. The maximum distance from the repeater to display can be up to 20M. It's also capable to cascade up to 10 units of the repeater.
FEATURES
-Allows HDMI 2.0b signals to be sent over long distances using standard HDMI cables
-HDCP 1.4 and 2.2 compliant
-UHD (Ultra-High Definition) 4K / 2K at 60 Hz
-Retiming capability to transmit clean regenerated signals
-Maintains full quality of the signal in a single HDMI link up to 4K 60Hz 4:4:4 color sampling
-Removes noise generating by long length HDMI cable for better audio visual quality
-Extension length up to 20M
-Able to cascade up to 10 units
APPLICATION
|
MODEL NO. |
HR-11 |
|
DESCRIPTION |
HDMI 2.0 Repeater Box |
|
MAX INPUT RESOLUTION |
HDMI x 1 type A female Resolutio n 3840 x 2160/ 4096 x 2160 @60Hz 4:4:4 |
|
MAX OUTPUT RESOLUTION |
HDMI x 1 type A female Resolution 3840 x 2160/ 4096 x 2160 @60Hz 4:4:4 |
|
VIDEO BANDWIDTH |
18 Gbps |
|
HDCP VERSION |
1.4 and 2.2 compliant |
|
LED INDICATOR |
LED x 1, green, red and orange for status indication |
|
AUDIO |
Digital audio output over HDMI |
|
POWER |
Power supply DC5V Power consumption 1W (max.) Power jack Φ1.3mm Including Power Adapter EU 5V + Cable USB A to DC 3.5 mm/1.35 mm 5 Volt |
|
ENVIRONMENT |
Operating temperature 0~45°C Operating humidity 20~90% Storage temperature 20~60°C |
|
DIMENSION |
154 x 69.2 x 23 mm ( L x W x H ) |
|
CASE MATERIAL |
Robust metal case |
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET_HR-11_HDMI 2.0 REPEATER BOX PARTILINK 4June2019 | 322 KB | 2019-07-08 |
