HDMI 2.0 MULTIVIEWER
VP-QV41H
For simultaneous display of four HDMI 2.0/1.4 sources on one screen with output resolutions up to 4K UHD - 4K @60Hz 3840 × 2160 4:4:4
Technologies
OVERVIEW
The Partilink VP-QV41H Multiview Video Processor is a user-friendly HDMI 2.0 video scaler and multiviewer designed to view max. 4 video sources on one 4K@60Hz 4:4:4 display simultaneously. It handles any input resolution up to 4K@60Hz to output maximum 4k@60Hz or downscale the resolution, adjusts its aspect ratio to match the native resolution of your screen to display.
-Fast switching between input channels and combined multiple source images on single monitor
-Input resolution up to 4K@60Hz, 4:4:4 color sampling
-Output resolution up to 4K@60Hz, 4:4:4 color sampling
-Upscaling up to 4K@60Hz, 4:4:4 color sampling and able to downscale as well
-PiP, PoP and multi-view layout configurations

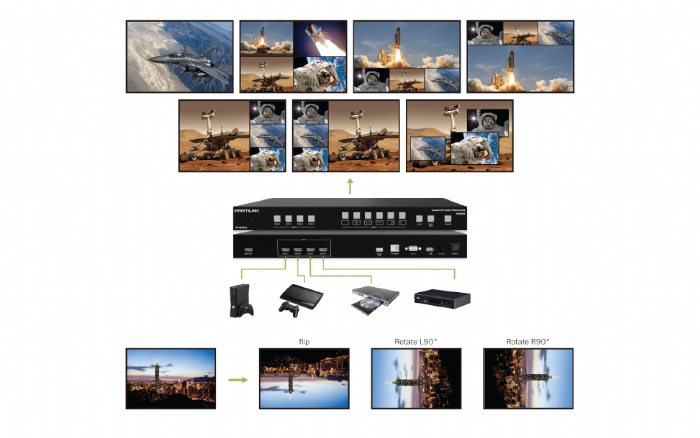

-14 different screen layouts by 6 preset screen layouts and extra 8 customized screen layouts
-Rotation (R90°and L90°) when input resolution up to 1080p and flip output in full screen layout
-Stereo audio output
-Control by front panel button, IR remote control, RS232/Telnet and Web UI control
-Firmware upgrade via USB port
-Hospitality in lobby, hospital, clinic
-Advertising in shopping mall, supermarket, restaurant,
-Broadcast in airport, bus or train station, classroom, Casino
-Rental and staging
-Entertainment in restaurant, bar, multimedia room, boardrooms, home cinema

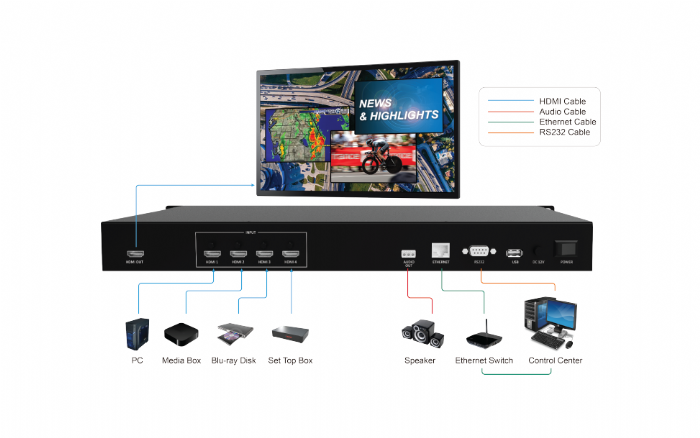

-Integrating with DVR, IP camera as a surveillance system
-Monitoring in bank and stock market
|
MODEL NO. |
VP-QV41H |
|
|
HARDWARE |
System Structure |
pure hardware |
|
Operating System |
no CPU and operating system |
|
|
INPUT/ OUTPUT |
Inputs |
4 x HDMI 2.0 with locking |
|
Output |
1 x HDMI 2.0 with locking |
|
|
Audio Output |
terminal block 3 pole, stereo |
|
|
IMAGE PROCESSING |
Display Mode |
full screen, quad view, PiP, PoP |
|
Input Resolution |
up to 3840 x 2160@60Hz, 4:4:4 color sampling |
|
|
Max Output Resolution |
up to 3840 x 2160@60Hz, 4:4:4 color sampling |
|
|
Output Resolutions |
3840x2160 - 60Hz, 50Hz, 30Hz 1920x1080 - 60Hz 1280x720 - 60Hz 720x480 - 60Hz |
|
|
Output Color Depth |
8 bpc (24 bit/px) |
|
|
Scaler |
scaling up to 4K@60Hz, 4:4:4 color sampling and downscaling as well |
|
|
Video Bandwidth |
up to 18 Gbps |
|
|
HDMI Compliance |
HDMI 1.4 and HDMI 2.0 |
|
|
HDCP Compliance |
HDCP 1.4 and 2.2 |
|
|
CONTROL METHODS |

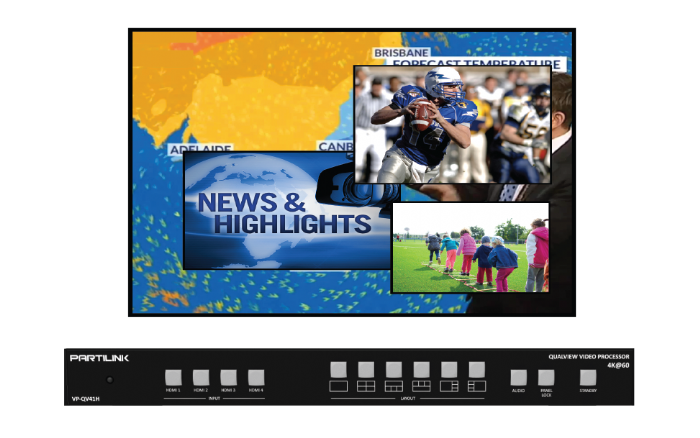

Front Panel Buttons |
4 x select HDMI 1,2,3,4 input and/or audio, 6 x display layout, 1 x Audio Selection, 1 x Panel lock, 1x Standby |
|
IR |
1 x IR remote control |
|
|
RS232/ Telnet |
1 x D9 female connector / compatible with third party control system |
|
|
Ethernet Port |
1 x RJ45 |
|
|
Web UI |
browser / touch screen |
|
|
STABILITY |
Safety |
hardware structure, no risk of virus interference |
|
Running Time |
no auto-reboot during 365 days/year, 7days/7, 24h/24 |
|
|
FIRMWARE |
Possible Upgrade |
1 x USB 2.0 |
|
LED INDICATOR |
Input |
blue backlight |
|
Output |
blue backlight |
|
|
Panel Lock |
blue backlight |
|
|
Standby On |
red backlight |
|
|
Standby Off |
green backlight |
|
|
POWER |
Internal Power Supply |
DC 12V/2A, locking barrel connector |
|
Power Consumption |
15W |
|
|
Power Adaptor |
universal power adapter |
|
|
ENVIRONMENT |
Operating Temperature |
0 °C~45°C |
|
Operating Humidity |
20~90% RH |
|
|
Storage Temperature |
-20 °C~60 °C |
|
|
PHYSICAL |
Dimensions |
440.4 x 230 x 45 mm (L x W x H, standard 1U) |
|
Fixing Components |
Rear bracket, footpad and screws |
|
|
Weight |
3.0 KG |
|
| FILE NAME | FILE FORMAT | SIZE | DATE | |
|---|---|---|---|---|
| DATASHEET_VP-QV41H HDMI MULTIVIEWER PARTILINK 4June2019.pdf | 877 KB | 2019-07-08 |
