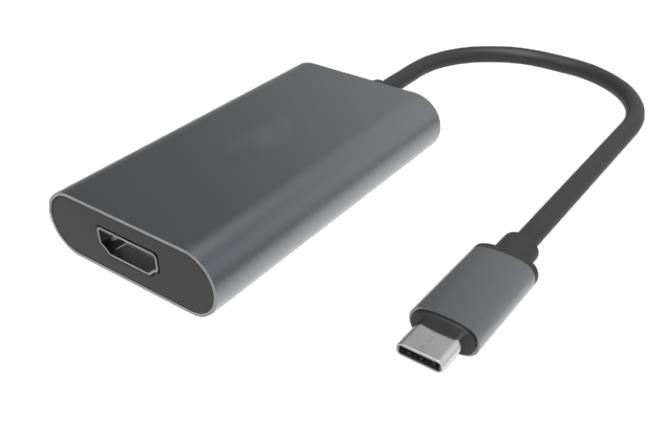

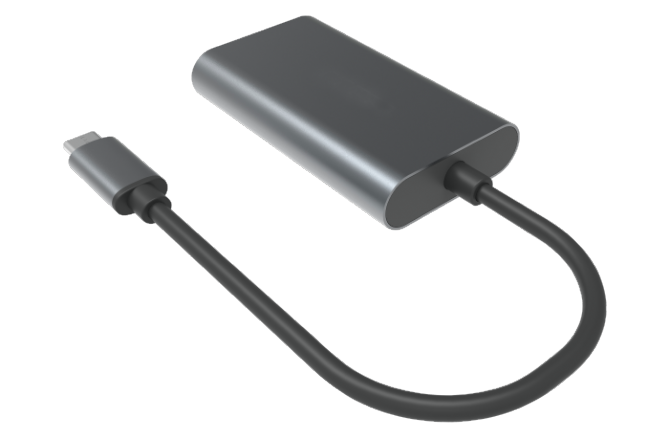

1080p HDMI to USB-C Grabber
capture 1080p video allowing the user to plug-in various HDMI output devices（such as PS4, XBOX, Switch, camera, etc.）
Technologies
- Features
- Supports HDMI 1.4b Standard up to 1080p @ 60fps
- Supports video capture at 1080p @ 60fps
- Supports 24 bit color
- Supports USB 3.0 and USB 2.0 data uplink
- Supports UVC 1.0
- Supports USB – C connector
- Supports USB port power supply, no need for an external power supply
- Compatible with third-party applications, such as PotPlayer, QuickTime, OBS, Xsplit, vMix, etc.
|
MODEL NAME |
1080p HDMI to USB-C Grabber |
|
DESCRIPTION |
1080p HDMI to USB-C Grabber |
|
INPUT INTERFACE |
1 x HDMI Type A 1 x HDMI 1.4b standard up to 1080p at 60fps |
|
OUTPUT INTERFACE |
1 x USB type-C ( USB 3.0 ) UVC video and audio |
|
RESOLUTION |
640x480p, 1280x720p, 1920x1080p |
|
VIDEO SAMPLING |
4:4:4 format |
|
OUTPUT COLOR SPACE |
YUY2, RGB |
|
HDMI AUDIO |
16-bit PCM encoded audio at 48kHz sampling rates |
|
SYSTEM REQUIREMENTS |
CPU: i5 Dual Core 2.8GHz or higher RAM: 4GB or higher OS: Windows (8 and above), Mac OSX (10.13 and above) |
|
ENVIRONMENT |
Operating Temperature 0~45℃ Operating Humidity 20~90% |
|
DIMENSION |
42 x 240 x 14 mm ( W x L x H including cable length) |
|
WEIGHT |
40 G |
|
COLOR |
Titanium Gray |
|
ACCESSORIES |
USB-C to USB-A 3.0 Adapter |
|
*DO NOT SUPPORT HDCP |
|
